ROG Kunai 3 USB Mode random disconnect!

rogeriskira
Rising Star I
Please tell us some basic information before asking for help:
Model Name: ROG Phone 3
Firmware Version: .99
Rooted or not: Not
Frequency of Occurrence: During Gaming with ROG Kunais 3
APP Name & APP Version (If your issue relates to the app): Still testing but noticed while playing Rockman X Dive
In addition to information above, please also provide as much details as you can, e.g., using scenario, what troubleshooting you've already done, screenshot, etc.
========================================
I paired my Kunai's with bluetooth and this doesn't seem to happen on bluetooth mode but while testing USB mode with the bumper on my ROG Phone 3. I noticed that randomly while playing Rockman X Dive my controller will disconnect (Green LED turns off and turns back on). When I first connected the controller the update firmware box appeared and I clicked update and it quickly disappeared not letting me know if everything went well. Then it asked for another update which I did and the same thing happened. SO not sure the firmware version or how to check.

I noticed after rebooting it didn't happen for a while but it did happen again. I checked the physical connection and it is really tight and secure. It just seemed to happen randomly.
48 REPLIES 48

May i know the latest firmware version of kunai 3? coz the my kunai left and right are different version.
lan61t

Update :

I went to Asus Service Center Indonesia in Jakarta, they done these steps below :

  1. Clean the connector on the case : using eraser to clean up the connector, because they said it’s a bit dirty
  2. Found that there’s one connector on the kunai 3 that not aligned.
  3. update firmware by connecting Kunai 3 using usb c to c to the side port.

a few hours of use, so far no more analog dialog poped up, kunai 3 is working with blue tooth, kunai 3 is is working with bumper case.

They told me if problem occured, i have to leave ROG3 + Kunai, because they suspected that there’s somthing wrong with ROG3 connectors that might short circuit Kunai3.

In the mean time, i’m testing it for a while.

My suggestion would be to visit your nearest Asus Service Center.

They informed me that they for all acessories, that their policy is actually to replace with a new one during warranty time. Outside of warranty time, they can only try to repair it, but they dont specifically tell me, what happened if they cant repair it.

Asus official guys maybe care to explain it a bit more.

A few things that i want to ask you guys, please check the screws on the side of the bumper case, mine has turned a bit rusty only after 2 weeks of use. They said the screws have to be black. Is this happened only to mind or anyone else also have this condition?


View post

lan61t
Star III
themisterunknown

May i know the latest firmware version of kunai 3? coz the my kunai left and right are different version.

https://zentalk.asus.com/en/discussion/comment/160439#Comment_160439


View post

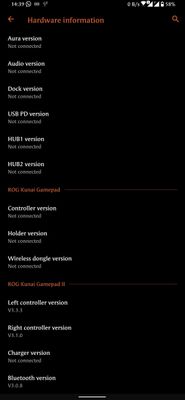

When i opened the firmware version
ROG Kunai Gamepad II (i know it's weird, because it's actually Kunai 3)
Left V3.3.3
Right V3.1.0
Bluetooth Version V3.0.8

Zax_Horgen
Star I

Guys, I have the same issue and I solve it my self already. It happend to my Kunai 3 on ROG phone 2 often disconnected and can't update right side of the controller cause failed every time.

After see all the reply, i try to solve ir my self and it work.

First, you need small screwdriver, isopropyl alcohol, small brush, and tissue.

Second, unscrew the phone holder on the side, all 3 screw every side and open it carefully.

As in my screen shot

Third, spay or apply small amount of isopropyl alcohol on the contact copper and clean it using brush. (note: the brush must be dry and clean otherwise it's just make it worst). And clean the copper with tissue. Repeat this step at least 3 time.

Fourth, put it back together and see if it connected and seen in hardware information.

Overall, I think it's just connection problem since it can't connected with bad contact plat.

As in my screenshot, it seen right controller version is detected as 3.1.0 not ff.ff.ff and i try to use it for awhile it work properly. Although idk why my system read it as Kunai 2 but at least it work.




I've had this issue in the past. A fix I've found is to plug in the gamepad directly into the slot using the speedcharger cord and attempting to update the controller software that way.
